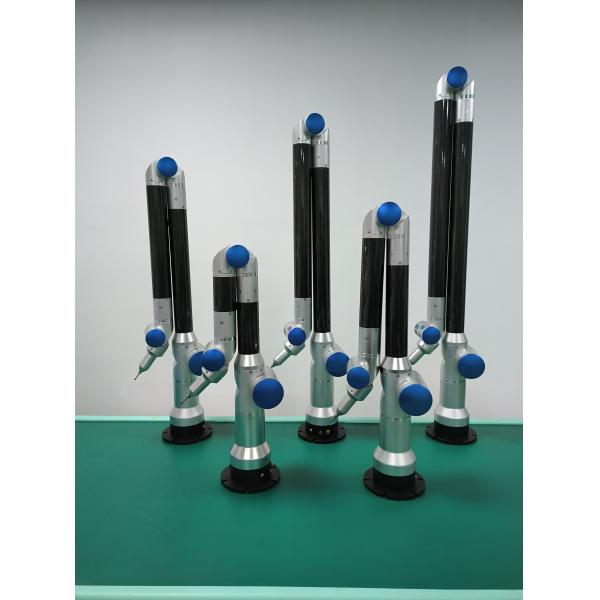

RA330 3D Measuring Arm Portable CMM with 3m Measurement Range

The RA330 Portable Coordinate Measuring Machine (CMM) is a revolutionary 3D measuring arm designed for automotive, oil & gas, and heavy industries. This intelligent multi-joint coordinate measuring system features a full-revolute open chain structure, eliminating traditional platforms and rails to provide exceptional portability and affordability.

Automotive industry, aviation and maritime sectors, machinery manufacturing, reverse engineering, auto parts measurement, motorcycle frames, pipe fitting measurement, robotic arm measurement, sheet metal manufacturing, material rack factory, and teaching demonstration.

• Measure geometric features on workpieces and generate new features through projection and intersection
• Quickly analyze spatial dimensions including distances and angles between geometric features
• Customize coordinate systems through points, lines, and surfaces with linear dimension marking

Comprehensive GD&T tools for evaluating form and position tolerances including verticality, parallelism, flatness, cylindricity, coaxiality, inclination, and position.

Compatible with multiple 3D data formats with various coordinate alignment methods. Automatically compares measured geometric features and surface point data with theoretical values, providing detailed error analysis graphic reports.

Generate comprehensive test reports in PDF, Excel, and MHT formats. Powerful customization capabilities with convenient output featuring images and text.
